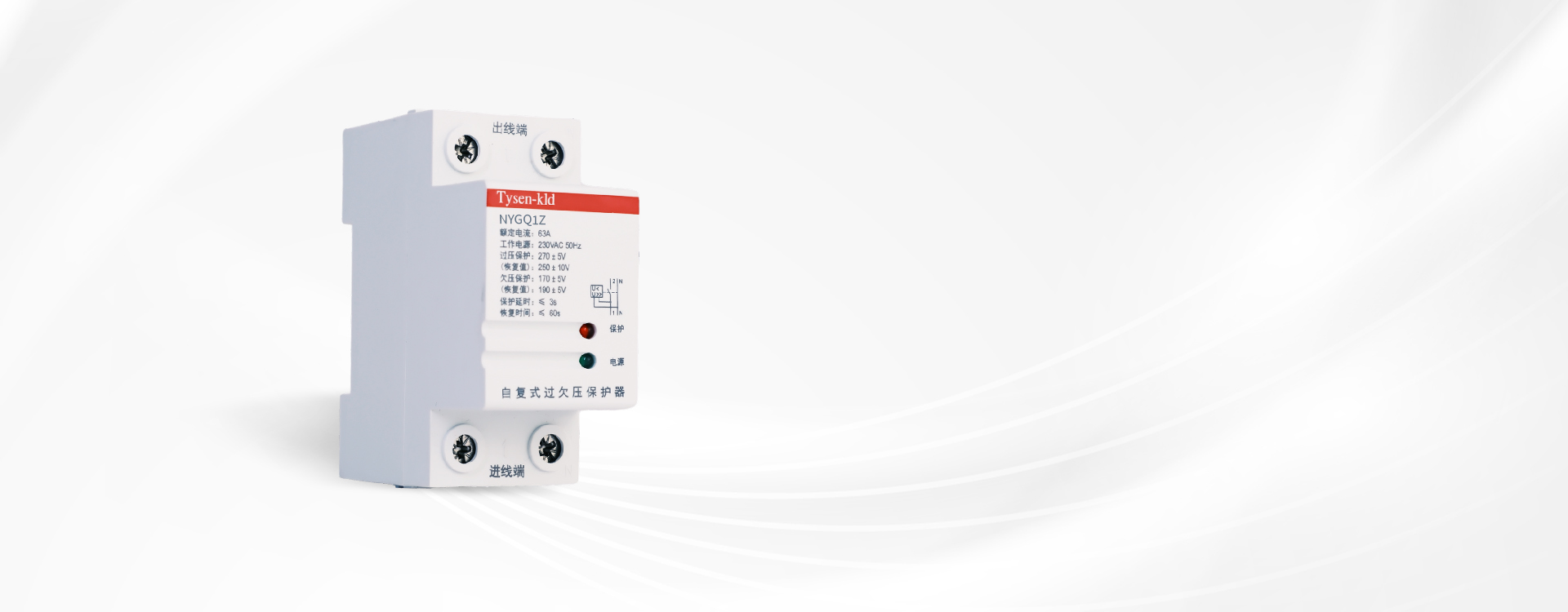

NYGQ1Z
Self-recovery Over-voltage
and Under-voltage Protector
（25-63A）
Simple
Efficient
Safe
Comprehensive
NYGQ1Z
Self-recovery Over-voltage
and Under-voltage Protector
（25-63A）
NYGQ1Z series self-recovery over-voltage and under-voltage protector is installed in the circuit to detect changes in voltage parameters of the electrical equipments. When the voltage rises above the set value, it can automatically cut off the power supply; when the voltage is recovered to the level below the set value, it can automatically trun on the power supply. It’s commonly used in residential compounds, office buildings, shopping malls, factories and other areas of the electrical system to protect circuits and electrical equipment from the hazards of over-voltage and under-voltage.
| Model | Rated current In(A) |
Number of poles | Rated operating voltage Ue(V） |
Rated insulation voltage Ui(V) |
Rated frequency (Hz) | Over-voltage starting value（V） | Constant voltage recovery value（V） | Under -voltage starting value（V） |
| NYGQ1Z | 25 | 1P+N | 230 | 690 | 50 | 270±5 | 240-260 | 175±5 |
| NYGQ1Z | 32 | |||||||
| NYGQ1Z | 40 | |||||||
| NYGQ1Z | 50 | |||||||
| NYGQ1Z | 63 | |||||||
| NYGQ1Z | 25 | 3P+N | 230 | 690 | 50 | 270±5 | 240-260 | 175±5 |
| NYGQ1Z | 32 | |||||||
| NYGQ1Z | 40 | |||||||
| NYGQ1Z | 50 | |||||||
| NYGQ1Z | 63 |
| NYGQ1Z | 3P+N | 25A |
| Product code | Number of poles | Rated current |
| NYGQ1Z： Self-recovery over-voltage and under-voltage protector | 1P+N:1 pole+N 3P+N:3 pole+N |
25A、32A、 40A、50A、63A |
Note: Conventional product adopts the mode of upper inlet and lower outlet. If you need the mode of lower outlet and upper outlet, please specify when ordering.
NYGQ1ZSelf-recovery over-voltage and under-voltage protector
Current shell frame Inm (A) ：25、32、40、50、63
Number of poles：1P+N
Rated operating voltage (V)：230
Rated insulation voltage Ui(V)：690
Rated frequency(Hz)：50
Over-voltage starting value(V)：270±5
Constant voltage recovery value(V)：240-260
Under -voltage starting value(V)：175±5
Current shell frame Inm (A) ：25、32、40、50、63
Number of poles：3P+N
Rated operating voltage (V)：230
Rated insulation voltage Ui(V)：690
Rated frequency(Hz)：50
Over-voltage starting value(V)：270±5
Constant voltage recovery value(V)：240-260
Under -voltage starting value(V)：175±5
Product code ： NYGQ1Z:Self-recovery over-voltage and under-voltage protector
Number of poles：1P+N:1 pole+N/3P+N:3 pole+N
Rated current：25A、32A、40A、50A、63A
Note: Conventional product adopts the mode of upper inlet and lower outlet. If you need the mode of lower outlet and upper outlet, please specify when ordering.
