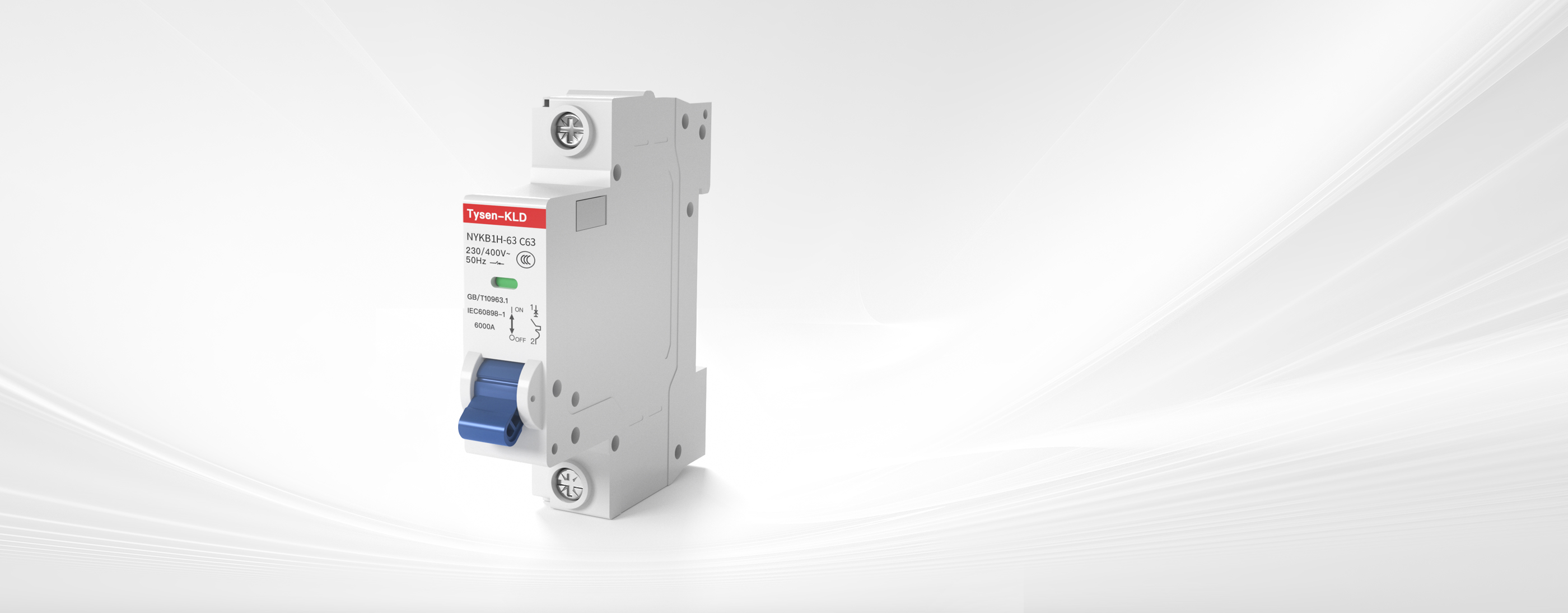

NYKB Series


    Miniature Circuit Breaker


    （1A-125A）





			 Intelligent
			 Convenient
			 Safe
			 Comprehensive












    PRODUCT OVERVIEW


    Miniature circuit breaker is a kind of circuit protection equipment usually used in low-voltage circuits. Its main function is to quickly cut off the circuit when detecting abnormalities of the current (such as overload or short-circuit), so as to protect the electrical equipment and personal safety. It can prevent the damage caused by the circuit overload, short-circuit and other faults, while ensuring the normal operation of the circuit.


    NYKB series miniature circuit breakers can quickly cut off the power supply when the circuit is abnormal to protect the safety of equipment and personnel. It has stable operating performance and long service life, which is suitable for being installed in places with limited space places with limited space, such as electrical control cabinets, household appliances, etc. A variety of rated currents and rated voltages are optional to meet the needs of different circuits.


















    PRODUCT CHARACTERITICS

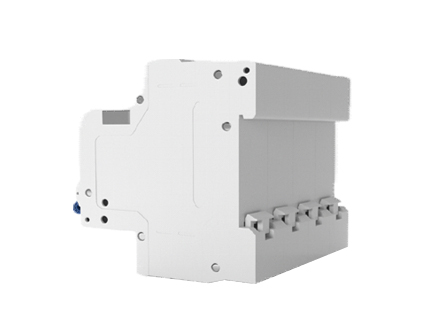

    NYKB Series Miniature Circuit Breaker




    Efficient current limiting and arc extinguishing capability, safer and clearer isolation function, reliable and stable overcurrent protection performance.










						Built-in tripping indication

    More assured operation










						Leakage protection function

    Safer electricity use










						Guide rail mounted

    More convenient installation

















    PRODUCT DIVERSITY


    A wide range of product specifications provide multiple choices








    NYKB1h Series







    NYKB2 Series







    NYKB3 Series







    NYKB5 Series















				Technical Parameters

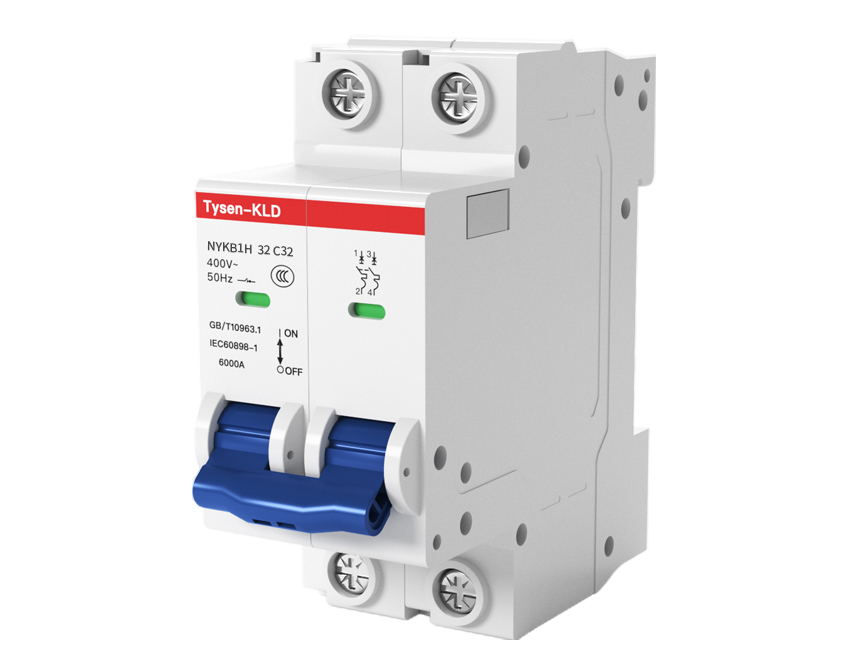

    NYKB1H Series Miniature Circuit Breaker









						Model
						Rated currentIn (A)
						Tripping curve
						 Impulse  withstand  voltage  Uimp(kV)
						Breaking  capacity (kA)
						Rated voltage（V）
						Number  of poles
						 Modulus  (Multiple of  9mm)




						NYKB1H
						1
						C、D
						4
						6
						AC 230/400
						1P、2P、 3P、4P
						2、4、6、8




                        NYKB1H
						2
						4
						6




                        NYKB1H
						3
						4
						6




                        NYKB1H
						4
						4
						6




                        NYKB1H
						6
						4
						6




                        NYKB1H
						10
						4
						6




                        NYKB1H
						16
						4
						6




                        NYKB1H
						20
						4
						6




                        NYKB1H
						25
						4
						6




                        NYKB1H
						32
						4
						6




                        NYKB1H
						40
						4
						6




                        NYKB1H
						50
						4
						6




                        NYKB1H
						63
						4
						6











    NYKB1HL Series Miniature Circuit Breaker









						Model
						Rated currentIn (A)
						Tripping curve
						 Impulse  withstand  voltage  Uimp(kV)
						Breaking  capacity (kA)
						Rated voltage（V）
						Number  of poles
						 Modulus  (Multiple of  9mm)
						Rated residual  action current (mA)




						NYKB1HL
						6
						C、D
						4
						6
						AC 230/400
						1P+N、2P、3 P、3P+N、4P
						5、6、7、8、 10、11、11.5、 13、15
						30、50、 100、300




                        NYKB1HL
						10
						4
						6




                        NYKB1HL
						16
						4
						6




                        NYKB1HL
						20
						4
						6




                        NYKB1HL
						25
						4
						6




                        NYKB1HL
						32
						4
						6




                        NYKB1HL
						40
						4
						6




                        NYKB1HL
						50
						4
						6




                        NYKB1HL
						63
						4
						6











    NYKB2 Series Miniature Circuit Breaker









						Model
						Rated currentIn (A)
						Tripping curve
						Breaking  capacity (kA)
						Rated voltage（V）
						Number  of poles
						 Modulus  (Multiple of  9mm)




						NYKB2
						6
						C、D
						4.5
						AC 230
						1P+N
						2




						NYKB2
						10
						4.5




						NYKB2
						16
						4.5




						NYKB2
						20
						4.5




						NYKB2
						25
						4.5




						NYKB2
						32
						4.5











    NYKB2L Series Miniature Circuit Breaker









						Model
						Rated currentIn (A)
						Tripping curve
						Breaking  capacity (kA)
						Rated voltage（V）
						Number  of poles
						Modulus (Multiple  of 9mm)
						Rated residual  action current (mA)




						NYKB2L
						6
						C、D
						4.5
						AC 230
						1P+N
						4
						30、50、 100、300




						NYKB2L
						10
						4.5




						NYKB2L
						16
						4.5




						NYKB2L
						20
						4.5




						NYKB2L
						25
						4.5




						NYKB2L
						32
						4.5











    NYKB3 Series Miniature Circuit Breaker









						Model
						Rated currentIn (A)
						Instantaneous  tripping current
						 Impulse  withstand  voltage  Uimp(kV)
						Breaking  capacity (kA)
						Rated voltage（V）
						Number  of poles
						  Modulus  (Multiple  of 9mm)




						NYKB3
						63
						10In、12In
						6
						10
						AC 230/400
						1P、2P、 3P、4P
						3、6、9、12




						NYKB3
						80
						6
						10




						NYKB3
						100
						6
						10




						NYKB3
						125
						6
						10











    NYKB5 Series Miniature Circuit Breaker









						Model
						Rated currentIn (A)
						Tripping curve
						Mechanical life（Times）
						Breaking  capacity (kA)
						Rated voltage（V）
						Number  of poles
						  Modulus  (Multiple  of 9mm)




						NYKB5
						6
						C、D
						4000
						10
						AC 230/400
						1P、2P、 3P、4P
						2、4、6、8




						NYKB5
						10
						4000
						10




						NYKB5
						16
						4000
						10




						NYKB5
						20
						4000
						10




						NYKB5
						25
						4000
						10




						NYKB5
						32
						4000
						10




						NYKB5
						40
						4000
						10




						NYKB5
						50
						4000
						10




						NYKB5
						63
						4000
						10











    NYKB5L Series Miniature Circuit Breaker









						Model
						Rated currentIn (A)
						Tripping curve
						Mechanical life（Times）
						Breaking  capacity (kA)
						Rated voltage（V）
						Number  of poles
						Modulus  (Multiple  of 9mm)
						Rated  residual  action  current(mA)




						NYKB5L
						6
						C、D
						4000
						10
						AC 230/400
						1P+N、2P、3 P、3P+N、4P
						2、4、6、8
						30、50、 100、300




						NYKB5L
						10
						4000
						10




						NYKB5L
						16
						4000
						10




						NYKB5L
						20
						4000
						10




						NYKB5L
						25
						4000
						10




						NYKB5L
						32
						4000
						10




						NYKB5L
						40
						4000
						10




						NYKB5L
						50
						4000
						10




						NYKB5L
						63
						4000
						10

















				Selection table







    NYKB1H Series Miniature Circuit Breaker









						NYKB1H
						3P
						C
						16A
						Additional functions




						Product code
						Pole No.
						Tripping characteristics
						Rated current
						Additional functions




						NYKB1H：
    Miniature Circuit Breaker
						1P:1 pole
    2P:2 pole
    3P:3 pole
    4P:4 pole
						C type
    D type    		1A
    2A
    3A
    4A
    6A
    10A
    16A
    20A
    25A
    32A
    40A
    50A
    63A
						SD:Alarm
    OF:Auxiliary
    OF+OF:Double auxiliary
    OF+SD:Auxiliary+Alarm
    MX+OF:Shunt release+Auxiliary
    MV:Overvoltage tripper
    MN:Under-voltage tripper
    MV+MN:Over-voltage and under-voltage trippers











    NYKB1HL Series Miniature Circuit Breaker









						NYKB1HL
						3P
						C
						16A
						30mA
						Additional functions




						Product code
						Pole No.
						Tripping characteristics
						Rated current
						Residual current
						Additional functions




						NYKB1HL：
    Leakage  protection  circuit breaker
						1P+N:1 pole+N
    2P:2 pole
    3P+N:3 pole+N
    4P:4 pole
						C type
    D type    		6A
    10A
    16A
    20A
    25A
    32A
    40A
    50A
    63A
						30mA
    50mA
    100mA
    300mA
						SD:Alarm
    OF:Auxiliary
    OF+OF:Double auxiliary
    OF+SD:Auxiliary+Alarm
    MX+OF:Shunt release+Auxiliary
    MV:Overvoltage tripper
    MN:Under-voltage tripper
    MV+MN:Over-voltage and under-voltage trippers











    NYKB2 Series Miniature Circuit Breaker









						NYKB2
						1P+N
						C
						16A




						Product code
						Pole No.
						Tripping characteristics
						Rated current




						NYKB2：
    Miniature Circuit Breaker
						1P+N:1 pole+N
						C type
    D type
						6A
    10A
    16A
    20A
    25A
    32A











    NYKB2L Series Miniature Circuit Breaker









						NYKB2L
						1P+N
						C
						16A
						30mA




						Product code
						Pole No.
						Tripping characteristics
						Rated current
						Residual  current




						NYKB2L：
    Leakage Protection  Circuit Breaker
						1P+N:1 pole+N
						C type
    D type
						6A
    10A
    16A
    20A
    25A
    32A
						30mA
    50mA
    100mA
    300mA











    NYKB3 Series Miniature Circuit Breaker









						NYKB3
						3P
						100A
						Additional  functions




						Product code
						Pole No.
						Rated current
						Additional  functions




						NYKB3：
    Miniature Circuit Breaker
						1P:1 pole
    2P:2 pole
    3P:3 pole
    4P:4 pole
						63A
    80A
    100A
    125A
						SD:Alarm
    OF:Auxiliary
    OF+OF:Double auxiliary
    OF+SD:Auxiliary+Alarm
    MX+OF:Shunt release+Auxiliary
    MV:Overvoltage tripper
    MN:Under-voltage tripper
    MV+MN:Over-voltage and under-voltage trippers











    NYKB5 Series Miniature Circuit Breaker









						NYKB5
						3P
						C
						16A
						Additional functions




						Product code
						Pole No.
						Tripping characteristics
						Rated current
						Additional  functions




						NYKB5：
    Miniature Circuit Breaker
						1P:1 pole
    2P:2 pole
    3P:3 pole
    4P:4 pole
						C type
    D type
						6A
    10A
    16A
    20A
    25A
    32A
    40A
    50A
    63A
						SD:Alarm
    OF:Auxiliary
    OF+OF:Double auxiliary
    OF+SD:Auxiliary+Alarm
    MX+OF:Shunt release+Auxiliary
    MV:Overvoltage tripper
    MN:Under-voltage tripper
    MV+MN:Over-voltage and under-voltage trippers











    NYKB5L Series Miniature Circuit Breaker









						NYKB5L
						3P
						C
						16A
						30mA
						Additional functions




						Product code
						Pole No.
						Tripping characteristics
						Rated current
						Residual  current
						Additional  functions




						NYKB5L：
    Leakage  Protection  Circuit Creaker
						1P+N:1 pole+N
    2P:2 pole
    3P+N:3 pole+N
    4P:4 pole
						C type
    D type    		6A
    10A
    16A
    20A
    25A
    32A
    40A
    50A
    63A
						30mA
    50mA
    100mA
    300mA
						SD:Alarm
    OF:Auxiliary
    OF+OF:Double auxiliary
    OF+SD:Auxiliary+Alarm
    MX+OF:Shunt release+Auxiliary
    MV:Overvoltage tripper
    MN:Under-voltage tripper
    MV+MN:Over-voltage and under-voltage trippers



















				       Technical Parameters



























    •



      Model：NYKB1H


      Rated currentIn (A)：1、2、3、4、10、16、20、25、32、40、50、63


      Tripping curve：C、D


       Impulse  withstand  voltage   Uimp(kV)：4


      Breaking  capacity (kA)：6


      Rated voltage（V）：AC 230/400


      Number  of poles ：1P、2P、 3P、4P


       Modulus  (Multiple of  9mm) ：2、4、6、8




      •


























    •



      Model：NYKB1HL


      Rated currentIn (A)：6、10、16、20、25、32、40、50、63


      Tripping curve：C、D


       Impulse  withstand  voltage   Uimp(kV)：4


      Breaking  capacity (kA)：6


      Rated voltage（V）：AC 230/400


      Number  of poles ：1P+N、2P、3 P、3P+N、4P


       Modulus  (Multiple of  9mm) ：5、6、7、8、 10、11、11.5、 13、15


      Rated residual  action current (mA)   ：30、50、 100、300




      •


























    •



      Model：NYKB2


      Rated currentIn (A)：6、10、16、20、25、32


      Tripping curve：C、D


      Breaking  capacity (kA)：4.5


      Rated voltage（V）：AC 230


      Number  of poles ：1P+N


      Modulus  (Multiple  of 9mm) ：2




      •


























    •



      Model：NYKB2L


      Rated currentIn (A)：6、10、16、20、25、32


      Tripping curve：C、D


      Breaking  capacity (kA)：4.5


      Rated voltage（V）：AC 230


      Number  of poles ：1P+N


      Modulus  (Multiple  of 9mm) ：4


      Rated residual  action current (mA)   ：30、50、 100、300




      •


























    •



      Model：NYKB3


      Rated currentIn (A)：63、80、100、125


      Instantaneous  tripping current：10In、12In


       Impulse  withstand  voltage  Uimp(kV)：6


      Breaking  capacity (kA)：10


      Rated voltage（V）：AC 230/400


      Number  of poles ：1P、2P、 3P、4P


        Modulus  (Multiple  of 9mm) ：3、6、9、12




      •


























    •



      Model：NYKB5


      Rated currentIn (A)：6、10、16、20、25、32、40、50、63


      Tripping curve：C、D


      Mechanical life（Times）：4000


      Breaking  capacity (kA)：10


      Rated voltage（V）：AC 230/400


      Number  of poles ：1P、2P、 3P、4P


      Modulus  (Multiple of  9mm) ：2、4、6、8


      Rated residual  action current (mA)   ：30、50、 100、300




      •


























    •



      Model：NYKB5L


      Rated currentIn (A)：6、10、16、20、25、32、40、50、63


      Tripping curve：C、D


      Mechanical life（Times）：4000


      Breaking  capacity (kA)：10


      Rated voltage（V）：AC 230/400


      Number of poles ：1P+N、2P、 3P+N、4P


      Modulus (Multiple of  9mm) ：2、4、6、8


      Rated residual  action current (mA)：30、50、 100、300




      •























				       Selection table



























    •



      Product code  ：NYKB1H：Miniature Circuit Breaker


      Pole No.：1P:1 pole、2P:2 pole、3P:3 pole、4P:4 pole


      Tripping characteristics：C type、D type


      Rated current：1A、2A、3A、4A、6A、10A、16A、20A、25A、32A、40A、50A、63A


      Additional  functions：SD:Alarm、OF:Auxiliary、OF+OF:Double auxiliary、OF+SD:Auxiliary+Alarm、MX+OF:Shunt release+Auxiliary、MV:Overvoltage tripper、MN:Under-voltage tripper、MV+MN:Over-voltage and under-voltage trippers




      •


























    •



      Product code：NYKB1HL：Leakage  protection  circuit breaker


      Pole No.：1P+N:1 pole+N、2P:2 pole、3P+N:3 pole+N、4P:4 pole


      Tripping characteristics：C type、D type


      Rated current：6A、10A、16A、20A、25A、32A、40A、50A、63A


      Residual current ：30mA、50mA、100mA、300mA


      Additional functions：SD:Alarm、OF:Auxiliary、OF+OF:Double auxiliary、OF+SD:Auxiliary+Alarm、MX+OF:Shunt release+Auxiliary、MV:Overvoltage tripper、MN:Under-voltage tripper、MV+MN:Over-voltage and under-voltage trippers




      •


























    •



      Product code  ：NYKB2：Miniature Circuit Breaker


      Pole No.：1P+N:1 pole+N


      Tripping characteristics：C type、D type


      Rated current：6A、10A、16A、20A、25A、32A




      •


























    •



      Product code ：NYKB2L:  Leakage Protection  Circuit Breaker


      Pole No.：1P+N:1 pole+N


      Tripping characteristics：C type、D type


      Rated current：6A、10A、16A、20A、25A、32A




      •


























    •



      Product code  ：NYKB3：Miniature Circuit Breaker


      Pole No.：1P:1 pole、2P:2 pole、3P:3 pole、4P:4 pole


      Rated current：63A、80A、100A、125A


      Additional  functions：SD:Alarm、OF:Auxiliary、OF+OF:Double auxiliary、OF+SD:Auxiliary+Alarm、MX+OF:Shunt release+Auxiliary、MV:Overvoltage tripper、MN:Under-voltage tripper、MV+MN:Over-voltage and under-voltage trippers




      •


























    •



      Product code  ：NYKB5：Miniature Circuit Breaker


      Pole No.：1P:1 pole、2P:2 pole、3P:3 pole、4P:4 pole


      Tripping characteristics：C type、D type


      Rated current：6A、10A、16A、20A、25A、32A、40A、50A、63A


      Additional  functions：SD:Alarm、OF:Auxiliary、OF+OF:Double auxiliary、OF+SD:Auxiliary+Alarm、MX+OF:Shunt release+Auxiliary、MV:Overvoltage tripper、MN:Under-voltage tripper、MV+MN:Over-voltage and under-voltage trippers




      •


























    •



      Product code  ：NYKB5L：NYKB5L:  Leakage  Protection  Circuit Creaker


      Pole No.：1P+N:1 pole+N、2P:2 pole、3P+N:3 pole+N、4P:4 pole


      Tripping characteristics：C type、D type


      Rated current：6A、10A、16A、20A、25A、32A、40A、50A、63A


      Residual  current ：30mA、50mA、100mA、300mA


      Additional  functions：SD:Alarm、OF:Auxiliary、OF+OF:Double auxiliary、OF+SD:Auxiliary+Alarm、MX+OF:Shunt release+Auxiliary、MV:Overvoltage tripper、MN:Under-voltage tripper、MV+MN:Over-voltage and under-voltage trippers




      •













    page top




















日韩无码人妻免费手机,3344成年在线视频免费,美国九九精品动态图,欧美亚洲成年网址在线观看
