NYKM Series


    Molded Case Circuit Breaker





			 Compact
			 Safe
			 Wide application
			 Diversity












    PRODUCT OVERVIEW

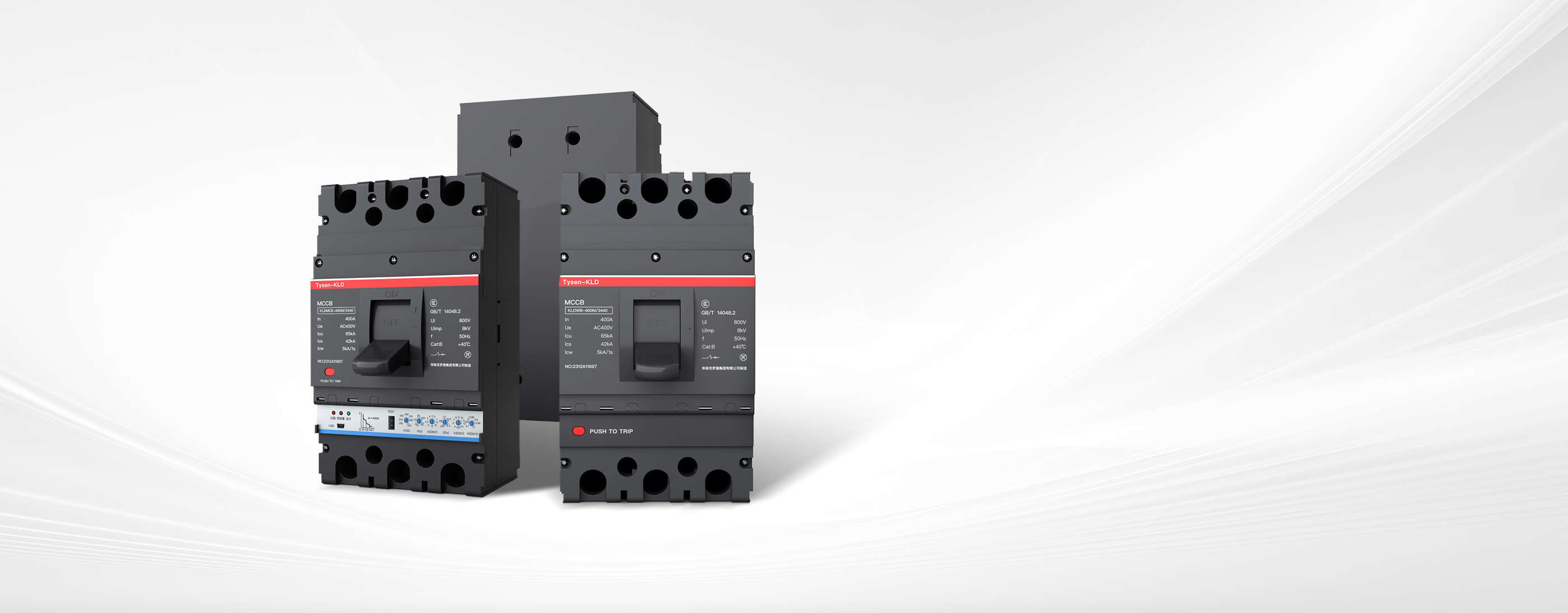

    NYKM series molded case circuit breaker features small size, high breaking capacity, multiple specifications and full range of accessories, which is widely used in industrial, commercial, residential and infrastructure projects. It can meet customized needs with highly flexible systems to realize intelligent control and management.

















    DOUBLE INSULATION DESIGN




    • Adopts dual insulation design to increase the insulation of the product. The insulation voltage level is 1000V, and the molded case is equipped with standard inter-phase spacer, which makes the electricity safer and more adaptable to various operating scenarios.
      •

















    FLAME-RETARDANT AND HIGH
    TEMPERATURE RESISTANT CASING

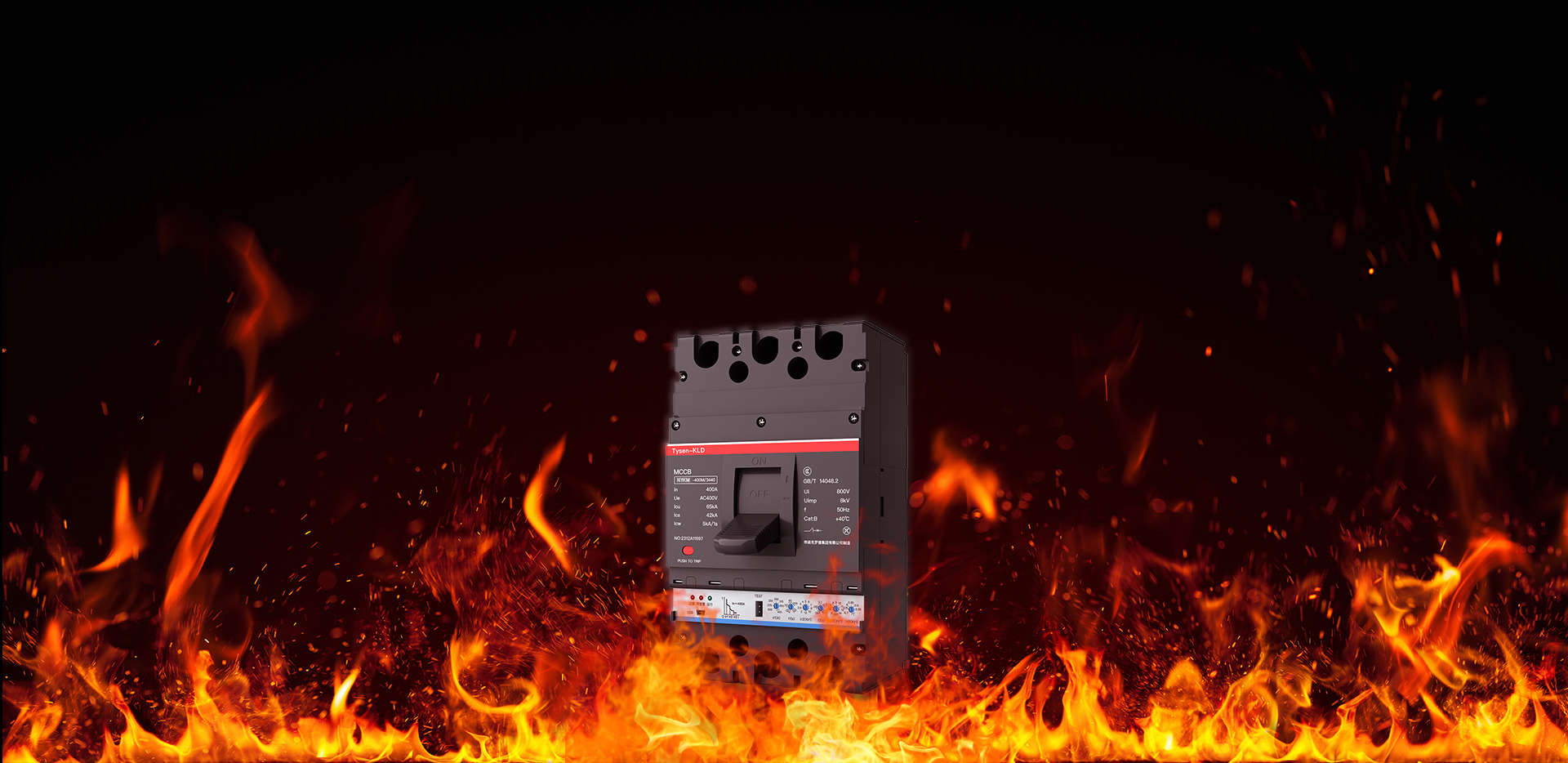

    Adopts flame-retardant and high temperature resistant casing can effectively protect electrical equipment from the threat of fire and high temperature. We pay attention to details and structural stability in design to ensure that the product can operate normally in various harsh environments.
















    MULTIPLE TRIPPING MODES






    Thermomagnetic mode


    Overload long delay protection


    Short-circuit instantaneous protection






    Leakage mode


    Overload long delay protection


    Short-circuit instantaneous protection


    Leakage protection






    Electronic display


    Overload long delay protection


    Short-circuit instantaneous protection


    Short-circuit short delay protection


    Grounding fault protection


    485Electrical energy measurement


    Selective coordination
















				Technical Parameters









    NYKM2 Series Thermomagnetic  Molded Case Circuit Breaker









						Model
						Rated  operating  voltage  Ue(V)
						Casing current Inm(A)
						Rated currentIn(A)
						Rated  insulation  voltage Ui(V)
						Rated impulse  withstand  voltage    Uimp(kV)
						Number  of poles
						Rated  ultimate  short -circuit  breaking  capacity  code
						Short-circuit breaking capacity




						Rated ultimate short-circuit  breaking capacity Icu(kA)
						Rated operating short-circuit  breaking capacity Ics(kA)




						400V
						690V
						400V
						690V




						NYKM2-63
						AC400
						63
						10、16、20、25、 32、40、50、63
						AC500
                        AC8
						3P
						L
						35
						-
						18
						-




                        3P、4P
						M
						50
						-
						25
						-




						NYKM2-100
						AC400、AC690
						100
						16、20、25、32、40、 50、63、80、100
						AC800
                        AC8
						3P
						L
						35
						20
						22
						10




                        3P、4P
						M
						65
						20
						35
						10




                        H
						85
						20
						50
						10




						NYKM2-225
						AC400、AC690
						225
						100、125、140、160、 180、200、225
						AC800
                        AC8
						3P
						L
						35
						20
						22
						10




                        3P、4P
						M
						65
						20
						35
						10




                        H
						85
						20
						50
						10




						NYKM2-250
						AC400、AC690
						250
						100、125、140、160、 180、200、225、250
						AC1000
                        AC8
						3P
						L
						36
						20
						27
						15




                        3P、4P
						M
						50
						20
						40
						15




                        H
						85
						20
						65
						15




						NYKM2-400
						AC400、AC690
						400
						225、250、315、 350、400
						AC800
                        AC8
						3P、4P
						L
						50
						15
						35
						10




						M
						65
						20
						42
						15




                        H
						100
						20
						65
						15




						NYKM2-630
						AC400、AC690
						630
						400、500、630
						AC800
                        AC8
						3P、4P
						L
						50
						15
						35
						10




						M
						65
						20
						42
						15




                        H
						100
						20
						65
						15




						NYKM2-800
						AC400、AC690
						800
						630、700、800
						AC1000
                        AC8
						3P、4P
						M
						75
						20
						65
						15




						H
						100
						20
						75
						15




						NYKM2-1250
						AC400、AC690
						1250
						800、1000、1250
						AC800
                        AC8
						3P
						-
						65
						15
						32.5
						10














    NYKM2L Series LEAKAGE Molded Case Circuit Breaker









						Model
						Rated  operating  voltage  Ue(V)
						Casing current Inm(A)
						Rated currentIn(A)
						Rated  insulation  voltage Ui(V)
						Rated impulse  withstand  voltage    Uimp(kV)
						Number  of poles
						Rated  ultimate  short -circuit  breaking  capacity  code
						Short-circuit breaking capacity
						Rated  residual  short -circuit  making  (breaking)  capacity  I△m(kA)
						Rated residual  operating current I△n (mA)
						Rated  residual  non -operating  current I△no




						Rated  ultimate  short -circuit  breaking  capacity  Icu(A)
						Rated  operating  short -circuit  breaking  capacity  Ics(A)




						NYKM2L-125
						AC400
						125
						16、20、25、32、40、 50、63、80、100、125
						AC1000
                        AC8
						3P、4P
						M
						50
						35
						1/4Icu
						100/300/500
						1/2I△no




						H
						85
						50




						NYKM2L-250
						AC400
						250
						100、125、140、 160、180、200、 225、250
						AC1000
                        AC8
						3P、4P
						M
						50
						35
						100/300/500




						H
						85
						50




						NYKM2L-400
						AC400
						400
						225、250、315、 350、400
						AC1000
                        AC8
						3P、4P
						M
						65
						42
						100/300/500




						H
						100
						70




						NYKM2L-630
						AC400
						630
						400、500、630
						AC1000
                        AC8
						3P、4P
						M
						65
						42
						300/500/1000




						H
						100
						70















    NYKM2E Series Electronic  Molded Case Circuit Breaker









						Model
						Rated  operating  voltage  Ue(V)
						Casing current Inm(A)
						Rated currentIn(A)
						Rated  insulation  voltage Ui(V)
						Rated impulse  withstand  voltage    Uimp(kV)
						Number  of poles
						Rated  ultimate  short -circuit  breaking  capacity  code
						Short-circuit breaking capacity




						Rated ultimate short-circuit  breaking capacity Icu(kA)
						Rated  operating  short -circuit  breaking  capacity  Ics(A)




						400V
						400V




						NYKM2E-100
						AC400
						100
						16、20、 25、32
						32、36、40、45、50、55、 60、63
						63、65、70、75、80、85、 90、95、100
						AC800
                        AC8
						3P、4P
						M
						50
						35




						H
						85
						50




						NYKM2E-225
						AC400
						225
						100、125、140、160、 180、200、225
						AC800
                        AC8
						3P、4P
						M
						65
						35




						H
						85
						50




						NYKM2E-250
						AC400
						250
						100、125、140、160、 180、200、225、250
						AC1000
                        AC8
						3P、4P
						M
						50
						50




						3P
						H
						85
						50




						NYKM2E-400
						AC400
						400
						200、225、250、280、 315、350、400
						AC800
                        AC8
						3P、4P
						M
						65
						42




						H
						100
						65




						NYKM2E-800
						AC400
						800
						400、420、440、 460、480、500、 530、560、600、630
						630、640、660、 680、700、720、 740、760、780、800
						AC800
                        AC8
						3P、4P
						M
						65
						42




						H
						100
						65














    NYKM3 Series Thermomagnetic  Molded Case Circuit Breaker   r









						Model
						Rated  operating  voltage  Ue(V)
						Casing current Inm(A)
						Rated currentIn(A)
						Rated  insulation  voltage Ui(V)
						Rated impulse  withstand  voltage    Uimp(kV)
						Number  of poles
						Rated  ultimate  short -circuit  breaking  capacity  code
						Rated ultimate short-circuit  breaking capacity Icu(kA)
						Rated  operating  short -circuit  breaking  capacity  Ics(A)




						415V
						690V
						415V
						690V




						NYKMM3-63
						AC415V
						63
						10、16、20、25、 32、40、50、63
						AC1000V
                        AC8
						3P、4P
						L
						36
						12
						36
						10




						M
						55
						12
						40
						10




						NYKMM3-125
						AC415V、AC690V
						125
						16、20、25、32、40、  50、63、80、100、125
						AC1000V
                        AC8
						3P、4P
						L
						50
						20
						40
						10




						M
						75
						20
						55
						10




						H
						100
						20
						70
						10




						NYKMM3-250
						AC415V、AC690V
						250
						100、125、140、160、 180、200、225、250
						AC1000V
                        AC12
						3P、4P
						L
						50
						20
						40
						10




						M
						75
						20
						55
						10




						H
						100
						20
						70
						10




						NYKMM3-400
						AC415V、AC690V
						400
						225、250、315、350、 400
						AC1000V
                        AC12
						3P、4P
						L
						55
						20
						55
						15




						M
						75
						20
						75
						15




						H
						100
						20
						85
						15




						NYKMM3-630
						AC415V、AC690V
						630
						400、500、630
						AC1000V
						3P、4P
						L
						55
						20
						55
						15




						M
						75
						20
						75
						15




						H
						100
						20
						85
						15




						NYKMM3-800
						AC415V、AC690V
						800
						630、700、800
						AC1000V
						3P、4P
						M
						75
						20
						75
						15




						H
						100
						20
						85
						15













    NYKM3L Series LEAKAGE Molded Case Circuit Breaker









						Model
						Rated  operating  voltage  Ue(V)
						Casing current  Inm(A)
						Rated currentIn(A)
						Selective  category
						Rated  insulation  voltage Ui(V)
						Rated impulse  withstand  voltage    Uimp(kV)
						Number  of poles
						Rated  ultimate  short -circuit  breaking  capacity  code
						Short-circuit breaking capacity
						Rated  residual  short-circuit  making  (breaking)  capacity
						Rated residual  operating current  I△n（mA）
						Rated  residual  non -operating  current I△no




						Rated ultimate short-circuit  breaking capacity Icu(kA)
						Rated  operating  short -circuit  breaking  capacity  Ics(A)
						Ⅰ type
						Ⅱ type




						400V
						400V




						NYKM3L-125
						400V
						125
						16A、20A、25A、32A、40A、  50A、63A、80A、100A、125A
						Category A
                        1000V
						8KV
						3
						M
						50
						35
						Icu×25%
						100、300、500
						30、100、300
						I△n×50%




						4
						M




						3
						H
						85
						50




						4
						H




						NYKM3L-250
						400V
						250
						100A、125A、140A、160A、 180A、200A、225A、250A
						Category A
                        1000V
						8KV
						3
						M
						50
						35
						Icu×25%
						100、300、500
						30、100、300
						I△n×50%




						4
						M




						3
						H
						85
						50




						4
						H




						NYKM3L-400
						400V
						400
						225A、250A、315A、 350A、400A
						Category A
                        1000V
						8KV
						3
						M
						65
						42
						Icu×25%
						100、300、500
						300、500、1000
						I△n×50%




						4
						M




						3
						H
						100
						70




						4
						H




						NYKM3L-800
						400V
						800
						630A、700A、800A
						Category A
                        1000V
						8KV
						3
						M
						65
						42
						Icu×25%
						100、300、500
						300、500、1000
						I△n×50%




						4
						M




						3
						H
						100
						70




						4
						H













    NYKM3E Series ELECTRONIC  Molded Case Circuit Breaker









						Model
						Rated  operating  voltage  Ue(V)
						Casing current  Inm(A)
						Rated currentIn(A)
						Rated  insulation  voltage Ui(V)
						Rated impulse  withstand  voltage    Uimp(kV)
						Use  category
						Number  of poles
						Rated  ultimate  short -circuit  breaking  capacity  code
						Short-circuit breaking capacity




						Rated ultimate short-circuit  breaking capacity Icu(kA)
						Rated  operating  short -circuit  breaking  capacity  Ics(A)




						400V
						690V
						400V
						690V




						NYKM3E-125
						AC415V、 AC690V
						32
						12、14、16、18、20、22、25、28、30、32
                        AC1000V
						AC8
						A
						3P、4P
						M
						70
						20
						50
						15




						63
						 25、28、32、36、40、45、50、56、60、63




						125
						50、63、70、75、80、85、90、95、100、125
						H
						85
						65




						NYKM3E-250
						160
						63、70、75、80、90、100、125、140、150、160
						A
						3P、4P
						M
						70
						20
						50
						10




						250
						100、112、125、140、150、160、180、200、225、250
						H
						85
						65




						NYKM3E-400
						400
						160、180、200、225、250、280、315、350、375、400
						B
						3P、4P
						M
						70
						20
						65
						15




						H
						100
						75




						NYKM3E-630
						630
						250、280、315、350、375、400、450、500、560、630
						B
						3P
						M
						75
						30
						65
						20




						H
						100
						75




						NYKM3E-800
						630
						250、280、315、350、375、400、450、500、560、630
						B
						3P、4P
						M
						75
						30
						65
						20




						800
						315、350、400、450、500、560、630、700、760、800
						H
						100
						75


















				Selection table


















						NYKM2
						250
						M
						P
						3
						2
						00
						2
						B
						250
						Installation  method




						Product code
						Housing  grade
						Breaking  capacity
						Operation  mode
						Pole No.
						Type of  tripping device
						Accessory  code
						Application  code
						N-pole code
						Rated current
						Installation  method




						NYKM2：
     Thermo -magnetic  Molded  Case Circuit  Breaker
						63A
    100A
    225A
    250A
    400A
    630A
    800A
    1250A
						L:Basic type
     M:Standard  type
     H:High breaking type
						Z:Manual operation
    P:Electric operation
    None: Direct operation
						3：3 pole
    4：4 pole
						2：Electro-magnetic type
    3：Thermo-magnetic type
    0：No trip
						Refers to  accessory  table
						2:Motor protection
    None: Power distribution protection
						A:No overcurrent protection, N pole is always switched on
    B:No overcurrent protection, N pole is switched on and off with other three pole
    C:With overcurrent protection, N pole is switched on and off with other three pole
    D:With overcurrent protection, N pole is always switched on
						10A、16A
    20A、25A
    32A、40A
    50A、63A
    80A、100A
     125A、140A
    160A、180A
    200A、225A
    250A、315A
     350A、400A
    630A、700A
     800A、1000A
    1250A
						Fixed wiring at front panel.
    Fixed wiring at rear panel.
    Plug-in wiring at front panel.
    Plug-in wiring at rear panel.
    Withdrawable wiring at front panel.
    Withdrawable wiring at rear panel .







    Note:
    ●   Overload alarm non-tripping device (code 3200I,4200I) is applicable to NYKM2 series molded case circuit breaker 100, 225, 250, 400, 630 housing. However, all specifications of four-pole
      circuit breaker of NYKM2 series with the neutral type C and D type do None overload alarm non-tripping function.
    ●  Standard inter-phase spacer.








    NYKM2L Series Leakage Molded Case Circuit Breaker









						NYKM2L
						250
						M
						P
						3
						2
						00
						2
						B
						250
						Residual  current
						Relay type
						Installation  method




						Product code
						Casing grade
						Breaking  capacity
						Operation  mode
						Pole No.
						Type of  tripping  device
						Accessory  code
						Application  code
						N-pole code
						Rated current
						Residual  current
						Relay type
						Installation  method




						NYKM2L：
    Leakage  Molded  Case Circuit breaker

    125A
    250A
    400A
    630A
						 M:Standard  type
     H:High breaking type
						Z:Manual operation
    P:Electric operation
    None: Direct operation
						3：3 pole
    4：4 pole
						2：Electro-magnetic type
    3：Thermo-magnetic type
						Refers to  accessory  table
						2:Motor protection
    None: Power distribution protection
						A:No overcurrent protection, N pole is always switched on
    B:No overcurrent protection, N pole is switched on and off with other three pole
    C:With overcurrent protection, N pole is switched on and off with other three pole
    D:With overcurrent protection, N pole is always switched on
						16A
    20A、25A
    32A、40A
    50A、63A
    80A、100A
     125A、140A
    160A、180A
    200A、225A
    250A、315A
     350A、400A
    630A
						100/300/ 500mA
     300/500/1000mA
						Relay type
    Non-relay type
						Fixed wiring at front panel.
    Fixed wiring at rear panel.
    Plug-in wiring at front panel.
    Plug-in wiring at rear panel.
    Withdrawable wiring at front panel.
    Withdrawable wiring at rear panel .







    Note:
    ●  ：I: Indicates that the leakage alarm module sends out a signal and the circuit breaker is tripped at the same time.

    ●   II: Indicates that the leakage alarm module sends out a signal and the circuit breaker is not tripped.

    ●   Standard inter-phase spacer








    NYKM2E Series Electronic  Molded Case Circuit Breaker









						NYKM2E
						250
						M
						P
						3
						4
						00
						2
						B
						250
						Installation  method




						Product code
						Casing grade
						Breaking  capacity
						Operation  mode
						Pole No.
						Type of  tripping  device
						Accessory  code
						Application  code
						N-pole code
						Rated current
						Installation  method




						NYKM2E：
    Electronic   Molded  Case Circuit  Breaker
						100A
    225A
    250A
    400A
    800A
						L:Basic type
     M:Standard  type
     H:High breaking type
						Z:Manual operation
    P:Electric operation
    None: Direct operation
						3：3 pole
    4：4 pole
						4：Electronic display
						Refers to  accessory  table
						2:Motor protection
    None: Power distribution protection
						A:No overcurrent protection, N pole is always switched on
    B:No overcurrent protection, N pole is switched on and off with other three pole
    C:With overcurrent protection, N pole is switched on and off with other three pole
    D:With overcurrent protection, N pole is always switched on
						32A
    63A
    100A
    225A
    250A
    400A
    630A
    800A
						Fixed wiring at front panel.
    Fixed wiring at rear panel.
    Plug-in wiring at front panel.
    Plug-in wiring at rear panel.
    Withdrawable wiring at front panel.
    Withdrawable wiring at rear panel .







    Note:
    ●   Overload alarm non-tripping module (code 3400I, 4400I) is applicable for NYKM2E series molded case circuit breakers; 100, 225, 250, 400, 800 housing can be equipped with alarm non-tripping module.
    ●  Standard inter-phase spacer








    NYKM3 Series Thermomagnetic  Molded Case Circuit Breaker   r









						NYKM3
						250
						M
						P
						3
						2
						00
						2
						B
						250
						Installation  method




						Product code
						Casing grade
						Breaking  capacity
						Operation  mode
						Pole No.
						Type of  tripping device
						Accessory  code
						Application  code
						N-pole code
						Rated current
						Installation  method




						NYKM3：
    Thermo -magnetic  Molded  Case Circuit  Breaker
						63A
    125A
    250A
    400A
    630A
    800A
						L:Basic type
     M:Standard  type
     H:High breaking type
						Z:Manual operation
    P:Electric operation
    None: Direct operation
						3：3 pole
    4：4 pole
						2：Electro-magnetic type
    3：Thermo-magnetic type
    0：No trip
						Refers to  accessory  table
						2:Motor protection
    None: Power distribution protection
						A:No overcurrent protection, N pole is always switched on
    B:No overcurrent protection, N pole is switched on and off with other three pole
    C:With overcurrent protection, N pole is switched on and off with other three pole
    D:With overcurrent protection, N pole is always switched on
						10A、16A
    20A、25A
    32A、40A
    50A、63A
    80A、100A
     125A、140A
     160A、180A
    200A、225A
    250A、315A
    350A、400A
    630A、700A
    800A
						Fixed wiring at front panel.
    Fixed wiring at rear panel.
    Plug-in wiring at front panel.
    Plug-in wiring at rear panel.
    Withdrawable wiring at front panel.
    Withdrawable wiring at rear panel .







    Note:
    ●   Overload alarm non-tripping device (code 3200I,4200I) is applicable to NYKM3 series molded case circuit breaker 100, 225, 250, 400, 630 housing. However, all specifications of four-pole circuit breaker of NYKM3 series with the neutral type C and D type do None overload alarm non-tripping function.
    ●  Standard inter-phase spacer.








    NYKM3L Series LEAKAGE Molded Case Circuit Breaker









						NYKM3L
						250
						M
						P
						3
						2
						00
						2
						B
						250
						Residual  current
						Non-relay type
						Installation  method




						Product code
						Casing grade
						Breaking  capacity
						Operation  mode
						Pole No.
						Type of  tripping device
						Accessory  code
						Application  code
						N-pole code
						Rated current
						Residual  current
						Relay type
						Installation  method




						NYKM3L：
    Leakage  Molded  Case Circuit  Breaker
						125A
    250A
    400A
    800A
						M:Standard  type
     H:High breaking type
						Z:Manual operation
    P:Electric operation
    None: Direct operation
						3：3 pole
    4：4 pole
						2：Electro-magnetic type
    3：Thermo-magnetic type
						Refers to  accessory  table
						2:Motor protection
    None: Power distribution protection
						A:No overcurrent protection, N pole is always switched on
    B:No overcurrent protection, N pole is switched on and off with other three pole
    C:With overcurrent protection, N pole is switched on and off with other three pole
    D:With overcurrent protection, N pole is always switched on
						16A
    20A、25A
    32A、40A
    50A、63A
    80A、100A
     125A、140A
     160A、180A
    200A、225A
    250A、315A
    350A、400A
    630A、700A
    800A
						100/300/500mA
     300/500/1000mA
						Relay type
    Non-relay type
						Fixed wiring at front panel.
    Fixed wiring at rear panel.
    Plug-in wiring at front panel.
    Plug-in wiring at rear panel.
    Withdrawable wiring at front panel.
    Withdrawable wiring at rear panel .







    Note: ●    I: Indicates that the leakage alarm module sends out a signal and the circuit breaker is tripped at the same time.
    ●  II: Indicates that the leakage alarm module sends out a signal and the circuit breaker is not tripped.
    ●  Standard inter-phase spacer








    NYKM3E Series ELECTRONIC Molded Case Circuit Breaker









						NYKM3E
						250
						M
						P
						3
						4
						00
						2
						B
						250
						Installation  method




						Product code
						Casing grade
						Breaking  capacity
						Operation  mode
						Pole No.
						Type of  tripping device
						Accessory  code
						Application  code
						N-pole code
						Rated current
						Installation  method




						NYKM3L：
    Electronic Molded  Case Circuit  Breaker
						125A
    250A
    400A
    630A
    800A
						L:Basic type
    M:Standard  type
     H:High breaking type
						Z:Manual operation
    P:Electric operation
    None: Direct operation
						3：3 pole
    4：4 pole
						4：Electronic display
						Refers to  accessory  table
						2:Motor protection
    None: Power distribution protection
						A:No overcurrent protection, N pole is always switched on
    B:No overcurrent protection, N pole is switched on and off with other three pole
    C:With overcurrent protection, N pole is switched on and off with other three pole
    D:With overcurrent protection, N pole is always switched on
						125A
    250A
    400A
    630A
    800A
						Fixed wiring at front panel.
    Fixed wiring at rear panel.
    Plug-in wiring at front panel.
    Plug-in wiring at rear panel.
    Withdrawable wiring at front panel.
    Withdrawable wiring at rear panel .







    Note:
    ●    Overload alarm non-tripping module (code 3400I, 4400I) is applicable for NYKM3E series molded case circuit breakers; 100, 225, 250, 400, 800 housing can be equipped with alarm non-tripping module.
    ●  Standard inter-phase spacer














				       Technical Parameters







    NYKM2 Series Thermomagnetic  Molded Case Circuit Breaker



















    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：63


      Rated currentIn(A)：10、16、20、25、 32、40、50、63


      Rated  insulation  voltage Ui(V)：AC500


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P/3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：
       35/50（400V）；-（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：
      18/25（400V）；-（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400、AC690


      Casing current  Inm(A) ：100


      Rated currentIn(A)：16、20、25、32、40、 50、63、80、100


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P/3P、4P/3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：
      35/65/85（400V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：
       22/35/50（400V）；10（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400、AC690


      Casing current  Inm(A) ：225


      Rated currentIn(A)：100、125、140、160、 180、200、225


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P/3P、4P/3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：
      35/65/85（400V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：
       22/35/50（400V）；10（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400、AC690


      Casing current  Inm(A) ：250


      Rated currentIn(A)：100、125、140、160、 180、200、225、250


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P/3P、4P/3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：
       36/50/85（400V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：
      27/40/65 （400V）；15（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400、AC690


      Casing current  Inm(A) ：400


      Rated currentIn(A)：225、250、315、 350、400


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：
      50/65/100（400V）； 15/20/20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：
        35/42/65（400V）； 10/15/15（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400、AC690


      Casing current  Inm(A) ：630


      Rated currentIn(A)：400、500、630


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：
        50/65/100（400V）； 15/20/20 （690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：
      35/42/65 （400V）；10/15/15（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400、AC690


      Casing current  Inm(A) ：800


      Rated currentIn(A)：630、700、800


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：
       75/100 （400V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：
      65/75 （400V）；15（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400、AC690


      Casing current  Inm(A) ：1250


      Rated currentIn(A)：800、1000、1250


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P


      Rated  ultimate  short -circuit  breaking  capacity  code：-


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：65(400V)；15（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：32.5(400V)；10（690V）




      •









    NYKM2L Series Leakage Molded Case Circuit Breaker



















    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：125


      Rated currentIn(A)：16、20、25、32、40、 50、63、80、100、125


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：50/85


      Rated operating short-circuit  breaking capacity Ics(kA)  ：35/50


      Rated  residual  short -circuit  making  (breaking)  capacity  I△m(kA)  ：1/4Icu


      Rated residual  operating current I△n (mA)   ：100/300/500


      Rated  residual  non -operating  current I△no：1/2I △no




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：250


      Rated currentIn(A)：100、125、140、160、180、200、225、250


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：50/85


      Rated operating short-circuit  breaking capacity Ics(kA)  ：35/50


      Rated  residual  short -circuit  making  (breaking)  capacity  I△m(kA)  ：1/4Icu


      Rated residual  operating current I△n (mA)   ：100/300/500


      Rated  residual  non -operating  current I△no：1/2I △no




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：400


      Rated currentIn(A)：225、250、315、350、400


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：65/100


      Rated operating short-circuit  breaking capacity Ics(kA)  ：42/70


      Rated  residual  short -circuit  making  (breaking)  capacity  I△m(kA)  ：1/4Icu


      Rated residual  operating current I△n (mA)   ：100/300/500


      Rated  residual  non -operating  current I△no：1/2I △no




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：630


      Rated currentIn(A)：400、500、630


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ）：65/100


      Rated operating short-circuit  breaking capacity Ics(kA)  ：42/70


      Rated  residual  short -circuit  making  (breaking)  capacity  I△m(kA)  ：1/4Icu


      Rated residual  operating current I△n (mA)   ：300/500/100


      Rated  residual  non -operating  current I△no：1/2I △no




      •









    NYKM2E Series Electronic  Molded Case Circuit Breaker



















    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：100


      Rated currentIn(A)：16、20、25、32/ 32、36、40、45、50、55、60、63/63、65、70、75、80、85、90、95、100


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ： 50 / 85 （400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ： 35 / 50 （400V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：225


      Rated currentIn(A)：100、125、140、160、180、200、225


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ： 65 / 85 （400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ： 35 / 50 （400V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：250


      Rated currentIn(A)：100、125、140、160、180、200、225、250


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P/3P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：50 / 85 （400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：50 / 50 （400V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：400


      Rated currentIn(A)：200、225、250、280、 315、350、400


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：65 / 100 （400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：42 / 65 （400V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC400


      Casing current  Inm(A) ：800


      Rated currentIn(A)：400、420、440、460、480、500、530、560、600、630 / 630、640、660、680、700、720、740、760、780、800


      Rated  insulation  voltage Ui(V)：AC800


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ： 65 / 100（400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ： 42 / 65（400V）




      •









    NYKM3 Series Thermomagnetic  Molded Case Circuit Breaker   r



















    •



      Rated  operating  voltage  Ue(V) ：AC415


      Casing current  Inm(A) ：63


      Rated currentIn(A)：10、16、20、25、 32、40、50、63


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：36 / 55 （415V）；12（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：36 / 40 （415V）；10（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC415、AC690V


      Casing current  Inm(A) ：125


      Rated currentIn(A)：16、20、25、32、40、  50、63、80、100、125


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：50 / 75 / 100 （415V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：40 / 55 / 70 （415V）；10（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC415、AC690V


      Casing current  Inm(A) ：250


      Rated currentIn(A)：100、125、140、160、 180、200、225、250


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC12


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：50 / 75 / 100 （415V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：40 / 55 / 70 （415V）；10（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC415、AC690V


      Casing current  Inm(A) ：400


      Rated currentIn(A)：225、250、315、350、 400


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC12


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：55 / 75 / 100 （415V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：55 / 75 / 85 （415V）；15（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC415、AC690V


      Casing current  Inm(A) ：630


      Rated currentIn(A)：400、500、630


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC12


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：L/M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：55 / 75 / 100 （415V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：55 / 75 / 85 （415V）；15（690V）




      •


























    •



      Rated  operating  voltage  Ue(V) ：AC415、AC690V


      Casing current  Inm(A) ：800


      Rated currentIn(A)：630、700、800


      Rated  insulation  voltage Ui(V)：AC1000


      Rated impulse  withstand  voltage    Uimp(kV)：AC12


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code：M/H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ： 75 / 100 （415V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：75 / 85 （415V）；15（690V）




      •









    NYKM3L Series LEAKAGE Molded Case Circuit Breaker



















    •



      Rated  operating  voltage  Ue (V)：400V


      Casing current  Inm(A) ：126


      Rated currentIn(A)：16A、20A、25A、32A、40A、  50A、63A、80A、100A、125A


      Selective  category ：Category A


      Rated  insulation  voltage Ui(V)：1000V


      Rated impulse  withstand  voltage    Uimp(kV)：8KV


      Number  of poles ：3 / 4 / 3 / 4


      Rated  ultimate  short -circuit  breaking  capacity  code：M / M / H / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：50 / 50 / 85 / 85 （400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：35 / 35 / 50 / 50 （400V）


      Rated  residual  short-circuit  making  (breaking)  capacity：Icu×25%


      Rated residual  operating current I△n (mA)   ：100、300、500 （Ⅰ type）；30、100、300 （Ⅱ type）


      Rated  residual  non -operating  current I△no ：I△n×50%




      •


























    •



      Rated  operating  voltage  Ue (V)：400V


      Casing current  Inm(A) ：250


      Rated currentIn(A)：100A、125A、140A、160A、 180A、200A、225A、250A


      Selective  category ：Category A


      Rated  insulation  voltage Ui(V)：1000V


      Rated impulse  withstand  voltage    Uimp(kV)：8KV


      Number  of poles ：3 / 4 / 3 / 4


      Rated  ultimate  short -circuit  breaking  capacity  code：M / M / H / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：50 / 50 / 85 / 85 （400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：35 / 35 / 50 / 50 （400V）


      Rated  residual  short-circuit  making  (breaking)  capacity：Icu×25%


      Rated residual  operating current I△n (mA)   ：100、300、500 （Ⅰ type）；30、100、300 （Ⅱ type）


      Rated  residual  non -operating  current I△no ：I△n×50%




      •


























    •



      Rated  operating  voltage  Ue (V)：400V


      Casing current  Inm(A) ：400


      Rated currentIn(A)：225A、250A、315A、 350A、400A


      Selective  category ：Category A


      Rated  insulation  voltage Ui(V)：AC1000V


      Rated impulse  withstand  voltage    Uimp(kV)：8KV


      Number  of poles ：3 / 4 / 3 / 4


      Rated  ultimate  short -circuit  breaking  capacity  code：M / M / H / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：65 / 65 / 100 / 100 （400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：42 / 42 / 70 / 70 （400V）


      Rated  residual  short-circuit  making  (breaking)  capacity：Icu×25%


      Rated residual  operating current I△n (mA)   ：100、300、500 （Ⅰ type）；300、500、1000 （Ⅱ type）


      Rated  residual  non -operating  current I△no ：I△n×50%




      •


























    •



      Rated  operating  voltage  Ue (V)：400V


      Casing current  Inm(A) ：800


      Rated currentIn(A)：630A、700A、800A


      Selective  category ：Category A


      Rated  insulation  voltage Ui(V)：AC1000V


      Rated impulse  withstand  voltage    Uimp(kV)：8KV


      Number  of poles ：3 / 4 / 3 / 4


      Rated  ultimate  short -circuit  breaking  capacity  code：M / M / H / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：65 / 65 / 100 / 100 （400V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：42 / 42 / 70 / 70 （400V）


      Rated  residual  short-circuit  making  (breaking)  capacity：Icu×25%


      Rated residual  operating current I△n (mA)   ：100、300、500 （Ⅰ type）；300、500、1000 （Ⅱ type）


      Rated  residual  non -operating  current I△no ：I△n×50%




      •









    NYKM3E Series ELECTRONIC  Molded Case Circuit Breaker



















    •



      Rated  operating  voltage  Ue (V)：AC415V、 AC690V


      Casing current  Inm(A) ：32/63/125


      Rated currentIn(A)：12、14、16、18、20、22、25、28、30、32 / 25、28、32、36、40、45、50、56、60、63 / 50、63、70、75、80、85、90、95、100、125


      Rated  insulation  voltage Ui(V)：AC1000V


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Use  category ：A


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code： M / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：70 / 85  （400V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：50 / 65 （400V）；15（690V）




      •


























    •



      Rated  operating  voltage  Ue (V)：AC415V、 AC690V


      Casing current  Inm(A) ：160/250


      Rated currentIn(A)：63、70、75、80、90、100、125、140、150、160 / 100、112、125、140、150、160、180、200、225、250


      Rated  insulation  voltage Ui(V)：AC1000V


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Use  category ：A


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code： M / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：70 / 85  （400V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：50 / 65 （400V）；10（690V）




      •


























    •



      Rated  operating  voltage  Ue (V)：AC415V、 AC690V


      Casing current  Inm(A) ：400


      Rated currentIn(A)：160、180、200、225、250、280、315、350、375、400


      Rated  insulation  voltage Ui(V)：AC1000V


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Use  category ：B


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code： M / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：70 / 100  （400V）；20（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：65 / 75 （400V）；15（690V）




      •


























    •



      Rated  operating  voltage  Ue (V)：AC415V、 AC690V


      Casing current  Inm(A) ：630


      Rated currentIn(A)：250、280、315、350、375、400、450、500、560、630


      Rated  insulation  voltage Ui(V)：AC1000V


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Use  category ：B


      Number  of poles ：3P


      Rated  ultimate  short -circuit  breaking  capacity  code： M / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：75 / 100  （400V）；30（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：65 / 75 （400V）；20（690V）




      •


























    •



      Rated  operating  voltage  Ue (V)：AC415V、 AC690V


      Casing current  Inm(A) ：630/800


      Rated currentIn(A)：250、280、315、350、375、400、450、500、560、630 / 315、350、400、450、500、560、630、700、760、800


      Rated  insulation  voltage Ui(V)：AC1000V


      Rated impulse  withstand  voltage    Uimp(kV)：AC8


      Use  category ：B


      Number  of poles ：3P、4P


      Rated  ultimate  short -circuit  breaking  capacity  code： M / H


      Rated ultimate short-circuit  breaking capacity Icu(kA) ：75 / 100  （400V）；30（690V）


      Rated operating short-circuit  breaking capacity Ics(kA)  ：65 / 75 （400V）；20（690V）




      •

























				       Selection table



























    •



      Product code  ：NYKM2：Thermo -magnetic  Molded  Case Circuit  Breaker


      Casing grade：63A、100A、225A、 250A、400A、630A、800A、1250A


      Breaking  capacity           ：L:Basic type、M:Standard  type、 H:High breaking type


      Operation  mode：Z:Manual operation、P:Electric operation、None: Direct operation


      Pole No.：3：3 pole、4：4 pole


      Type of  tripping device：2：Electro-magnetic type 、3：Thermo-magnetic type 、0：No trip


      Accessory  code：Refers to  accessory  table


      Application  code：2:Motor protection 、None: Power distribution protection


      N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on


      Rated current：10A、16A、20A、25A 、32A、40A 、50A、63A、0A、100A、125A、140A 、160A、180A、200A、225A、250A、315A、350A、400A 、630A、700A、800A、1000A、1250A


      Installation  method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .




      •











    Note: ?   Overload alarm non-tripping device (code 3200I,4200I) is applicable to NYKM2 series molded case circuit breaker 100, 225, 250, 400, 630 housing. However, all specifications of four-pole  circuit breaker of NYKM2 series with the neutral type C and D type do None overload alarm non-tripping function.Standard inter-phase spacer.

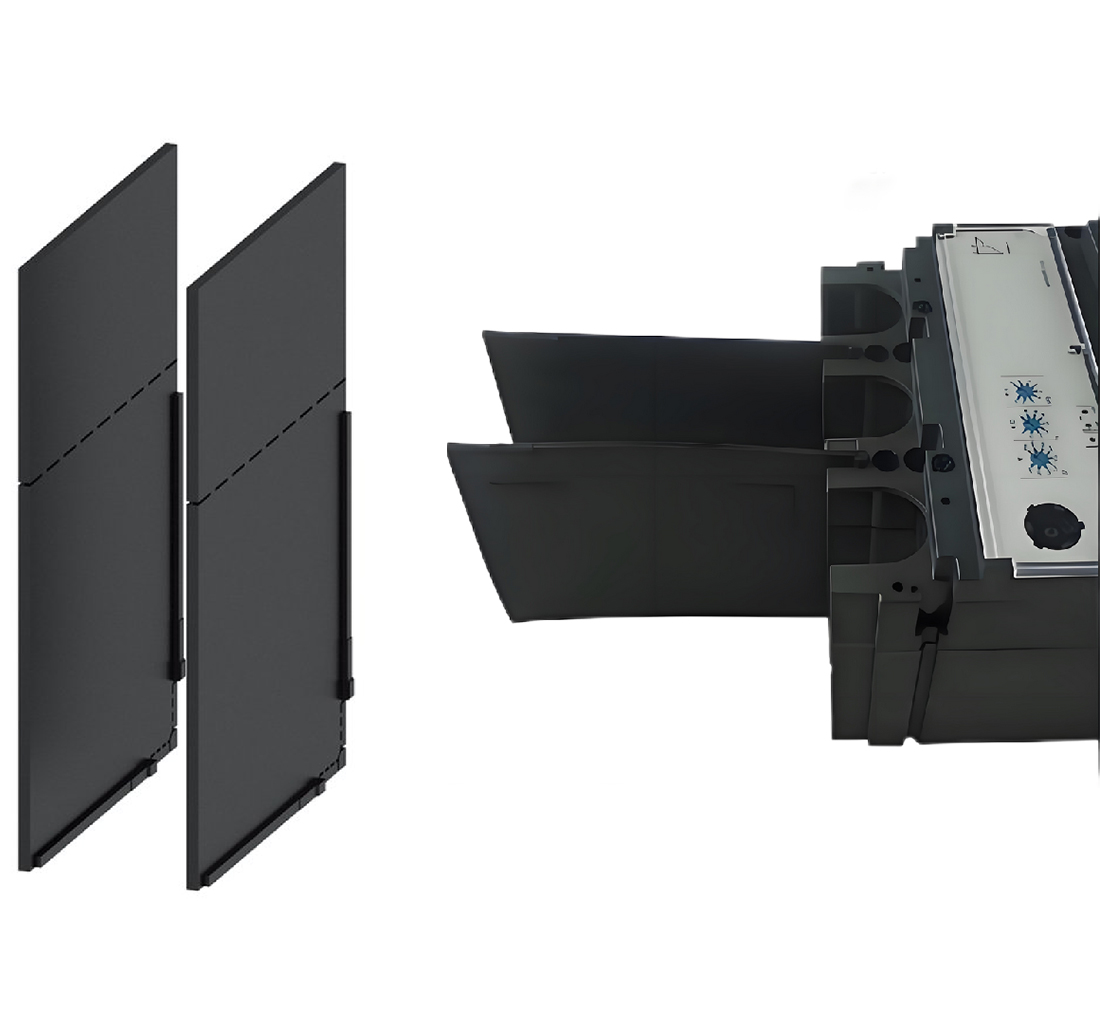

    ?  Standard inter-phase spacer.





















    •



      Product code  ：NYKM2L Series Leakage Molded Case Circuit Breaker


      Casing grade：125A、250A、400A、630A


      Breaking  capacity           ：M:Standard  type、 H:High breaking type


      Operation  mode：Z:Manual operation、P:Electric operation、None: Direct operation


      Pole No.：3：3 pole、4：4 pole


      Type of  tripping device：2：Electro-magnetic type 、3：Thermo-magnetic type


      Accessory  code：Refers to  accessory  table


      Application  code：2:Motor protection 、None: Power distribution protection


      N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on


      Rated current：16A、20A、25A 、32A、40A 、50A、63A、0A、100A、125A、140A 、160A、180A、200A、225A、250A、315A、350A、400A 、630A


      Residual  current ：100/300/500mA/ 300/500/1000mA


      Relay type：Relay type   、Non-relay type


      Installation  method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .




      •











    注：?   I: Indicates that the leakage alarm module sends out a signal and the circuit breaker is tripped at the same time.
    II: Indicates that the leakage alarm module sends out a signal and the circuit breaker is not tripped.
    ?  Standard inter-phase spacer





















    •



      Product code：NYKM2E:  Electronic   Molded  Case Circuit  Breaker


      Casing grade：100A、225A、250A、400A、800A


      Breaking  capacity：M:Standard  type、 H:High breaking type


      Operation  mode：Z:Manual operation、P:Electric operation、None: Direct operation


      Pole No.：3：3 pole、4：4 pole


      Type of  tripping  device：4：Electronic display


      Accessory  code：Refers to  accessory  table


      Application  code：2:Motor protection 、None: Power distribution protection


      N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on


      Rated current：32A、63A、100A、225A、250A、400A 、630A、800A


      Installation  method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .




      •











    注：?  ：Note: Overload alarm non-tripping module (code 3400I, 4400I) is applicable for NYKM2E series molded case circuit breakers; 100, 225, 250, 400, 800 housing can be equipped with alarm non-tripping module.


    ?   Standard inter-phase spacer





















    •



      Product code  ：NYKM3：Thermo -magnetic  Molded  Case Circuit  Breaker


      Casing grade：63A、125A、250A、400A 630A、800A


      Breaking  capacity           ：M:Standard  type、 H:High breaking type、H:High breaking type


      Operation  mode：Z:Manual operation、P:Electric operation、None: Direct operation


      Pole No.：3：3 pole、4：4 pole


      Type of  tripping device：2：Electro-magnetic type 、3：Thermo-magnetic type 、0：No trip


      Accessory  code：Refers to  accessory  table


      Application  code：2:Motor protection 、None: Power distribution protection


      N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on


      Rated current：16A、20A、25A 、32A、40A 、50A、63A、0A、100A、125A、140A 、160A、180A、200A、225A、250A、315A、350A、400A 、630A、700A、800A


      Installation  method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .




      •











    注：?  Note: Overload alarm non-tripping device (code 3200I,4200I) is applicable to NYKM3 series molded case circuit breaker 100, 225, 250, 400, 630 housing. However, all specifications of four-pole circuit breaker of NYKM3 series with the neutral type C and D type do None overload alarm non-tripping function.

    ?  Standard inter-phase spacer.





















    •



      Product code  ：NYKM3L ：Series Leakage  Molded Case Circuit Breaker


      Casing grade：125A、250A、400A、800A


      Breaking  capacity           ：M:Standard  type、 H:High breaking type


      Operation  mode：Z:Manual operation、P:Electric operation、None: Direct operation


      Pole No.：3：3 pole、4：4 pole


      Type of  tripping device：2：Electro-magnetic type 、3：Thermo-magnetic type


      Accessory  code：Refers to  accessory  table


      Application  code：2:Motor protection 、None: Power distribution protection


      N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on


      Rated current：16A、20A、25A 、32A、40A 、50A、63A、0A、100A、125A、140A 、160A、180A、200A、225A、250A、315A、350A、400A 、630A、700A、800A


      Residual  current ：100/300/ 500mA、 300/500/1000mA


      Relay type：Relay type   、Non-relay type


      Installation  method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .




      •











    Note: ?    I: Indicates that the leakage alarm module sends out a signal and the circuit breaker is tripped at the same time.

    ?    II: Indicates that the leakage alarm module sends out a signal and the circuit breaker is not tripped.
    ?    Standard inter-phase spacer





















    •



      Product code  ：NYKM3E:  Electronic Molded  Case Circuit  Breaker


      Casing grade：125A、250A、400A、630A、800A


      Breaking  capacity           ：L:Basic type、M:Standard  type、 H:High breaking type


      Operation  mode：Z:Manual operation、P:Electric operation、None: Direct operation


      Pole No.：3：3 pole、4：4 pole


      Type of  tripping device：4：Electronic display


      Accessory  code：Refers to  accessory  table


      Application  code：2:Motor protection 、None: Power distribution protection


      N-pole code：A:No overcurrent protection, N pole is always switched on、B:No overcurrent protection, N pole is switched on and off with other three pole、C:With overcurrent protection, N pole is switched on and off with other three pole、D:With overcurrent protection, N pole is always switched on


      Rated current：125A、250A、400A、630A、800A


      Installation  method：Fixed wiring at front panel.、Fixed wiring at rear panel.、Plug-in wiring at front panel.、Plug-in wiring at rear panel.、Withdrawable wiring at front panel.、Withdrawable wiring at rear panel .




      •











    Note:?     Overload alarm non-tripping module (code 3400I, 4400I) is applicable for NYKM3E series molded case circuit breakers; 100, 225, 250, 400, 800 housing can be equipped with alarm non-tripping module.
    ?   Standard inter-phase spacer






    page top




















日韩无码人妻免费手机,3344成年在线视频免费,美国九九精品动态图,欧美亚洲成年网址在线观看
