    Solid-insulation-embedded

    Product Features

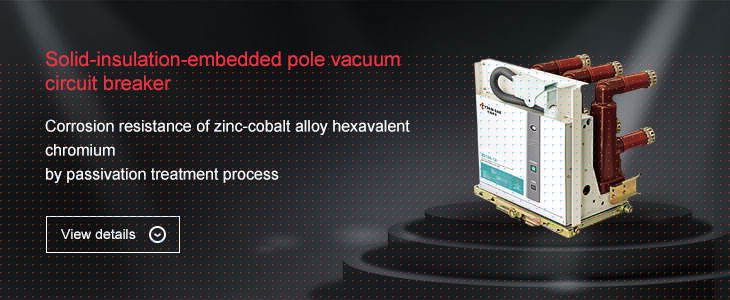

    • The solid-insulation-embedded pole vacuum interrupter is used to realize maintenance-free of products;
    • The level of salt spray resistance test is up to 300 hrs;
    • Use the German INA customized copper-based high-pressure alloy oil-free bearings;
    • The passivation surface treatment process of zinc-cobalt alloy hexavalent chromium in Malaysia is introduced;
    • The design of mechanism is optimized, with comprehensive strength and rigidity at leading level;
    • Mechanical life of 30,000 cycles;
    • The spring mechanism is self-contained with energy-storage lever, both convenient and expedient.

    Structural Characteristics

    Overview

    • The main circuits of ZN139-12/G-type vacuum circuit breakers are in form of solid-insulation-embedded pole. The operating mechanisms are divided into two types: spring-operated type and permanent magnet type.
    • The ZN139-12 / G-type vacuum circuit breaker products can be used separately, or used in the mid-set switchgear and fixed switchgear.

    Insulation Form

    • The ZN139-12/G vacuum circuit breaker is in overall structure of front-and-rear arrangement of the actuator and the primary conductive circuit. The main electrical circuit part is in three-phase floor-type structure.

    Main Specifications and Technical Parameters

    Main Specifications and Technical Parameters of Circuit Breaker

      No. Description Unit Parameters
      1 Rated voltage kV 12
      2 Rated power frequency withstand voltage (1 min) kV 42/48
      3 Rated lightning impulse/fracture withstand voltage (peak) kV 75/85
      4 Rated frequency Hz 50
      5 Rated current A 630
      1250
      630、1250
      1600、2000、2500
      1250、1600、2000
      2500、3150、4000*
      6 Rated short-circuit breaking current kA 20 25 31.5 40
      7 Rated short-circuit making current kA 50 63 80 100
      8 Rated peak withstand current kA 50 63 80 100
      9 Rated thermal stability current (effective value) kA 20 25 31.5 40
      10 Rated short-circuit duration s 4
      11 Rated operations of short-circuit breaking current Number of cycles 30 30 20
      12 Mechanical life Number of cycles 30000
      13 Rated single/back to back capacitor bank breaking current A 630/400(40kA for 800/400)
      14 Phase-to-phase spacing mm below 1600A:210±1.5
      above 2000A:275±1.5
      15 Contacts spacing mm 9±1
      16 Contact overtravel mm 3±0.5
      17 Allowable wearing accumulation thickness of dynamic and static contacts mm 3
      18 Time interval between opening of first and last phase of three phase circuit-breaker ms ≤ 2
      19 Bouncing time of contactor closed ms ≤ 2 (40kA ≤ 3)
      20 Opening time ms 20-55
      21 Closing time ms 35-70
      22 Rated operating sequence   0.3s 180s
      0——CO——CO
      180s 180s
      0——CO——CO
